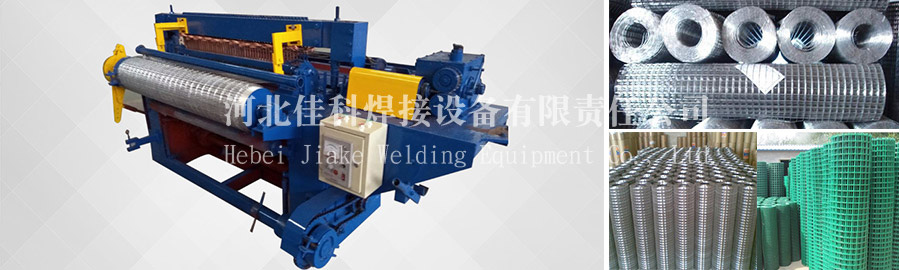

Electric Welded Mesh Machine
Electric Welded Mesh Machine
Description:
Electric welded mesh machine can feeding both line wire and cross wire coils automatically. The raw material is applicable for low-carbon steel wire or galvanized wire. It has advantage such as reasonable design, low noise, working stably and easy for operation. The mesh size is precise, the width and length for welded mesh can be set as customers’ requirement.
Parameter:
|
Type |
JK-DNW-A |
JK-DNW-B |
JK-DNW-C |
|
Width of Mesh |
914.4mm; 1000mm |
1219.2mm; 1524mm (4feet, 5feet) |
1219.2mm; 1524mm; 1828.8mm; 2133.6mm (4feet, 5feet, 6feet, 7feet) |
|
Mesh Aperture |
6.35mm-12.7mm(1/4”-1/2”) |
12.7mm-101.6mm(1/2”-4”) |
25.4mm-101.6mm(1”-4”) |
|
Wire Diameter |
0.4mm-0.65mm |
0.65mm-1.8mm |
1.0mm-2.2mm |
|
Input Voltage |
3-Phase 380V/220V/415V/440V 50Hz/60Hz |
||
|
Motor |
2.2KW |
2.2KW |
2.2KW; 4.0KW |
|
Overall Size |
2.3*1.3*1.4M |
2.5*1.3*1.4M 2.9*1.3*1.4M |
2.5*1.3*1.4M 2.9*1.3*1.4M 3.3*1.3*1.4M 3.6*1.3*1.4M |
|
Weight |
1.5T |
2.0T; 2.5T |
2.0T; 2.5T; 3.0T; 3.5T |
|
Rated Capacity |
50kva*3 |
60kva*4; 60kva*5 |
60kva*4; 60kva*5; 60kva*6; 60kva*7 |
