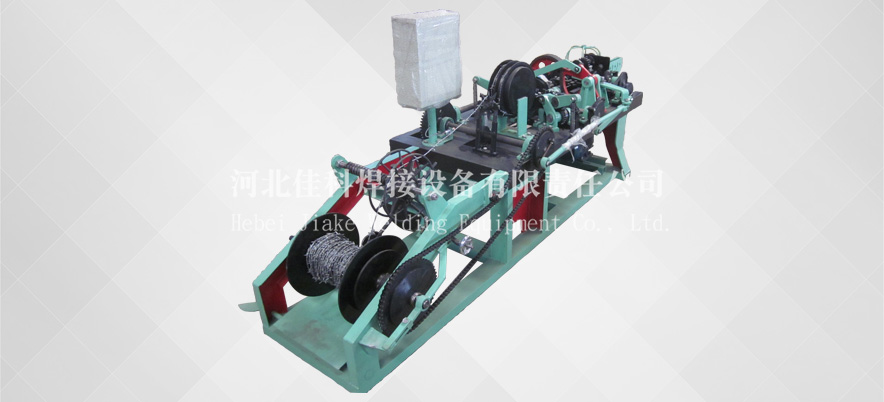

Barbed Wire Machine
Barbed Wire Machine
Description:
Barbed wire machine can produce barbed wire which is widely used in national defense, military, railway, highway, agriculture, animal husbandry and other industries. The material are usually use hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc. The main advantage is saving materials and high production capacity.
Parameter:
|
Model |
SC-A |
CS-B |
CS-C |
|
Motor Power |
3KW |
2.2KW |
2.2KW |
|
Main Drive Shaft Speed |
402 r/min |
355 r/min |
355 r/min |
|
Core Wire Diameter |
2.2-3.0mm |
2.2-3.0mm |
1.6-2.8mm |
|
Barbed Wire Diameter |
1.8-2.2mm |
1.8-2.2mm |
1.6-2.2mm |
|
Barb Space |
76mm(3”)/102mm(4”)/127mm(5”) |
102mm(4”)/127mm(5”) |
102mm(4”)/127mm(5”) |
|
Twisted Number |
3.5 |
|
7 |
|
Theoretical Output |
70 Kg/h |
40 Kg/h |
40 Kg/h |
|
Weight |
1200 Kg |
1000 Kg |
1000 Kg |
|
Dimension |
1950*950*1300mm 1760*550*760mm |
3100*1000*1150mm |
3100*1000*1150mm |
